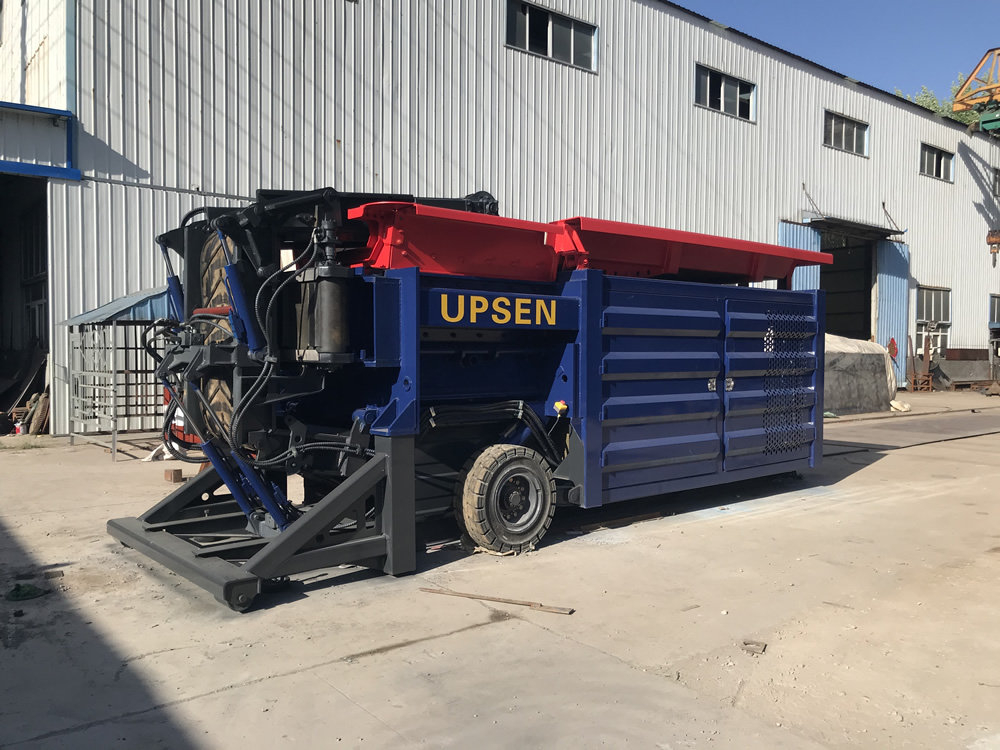

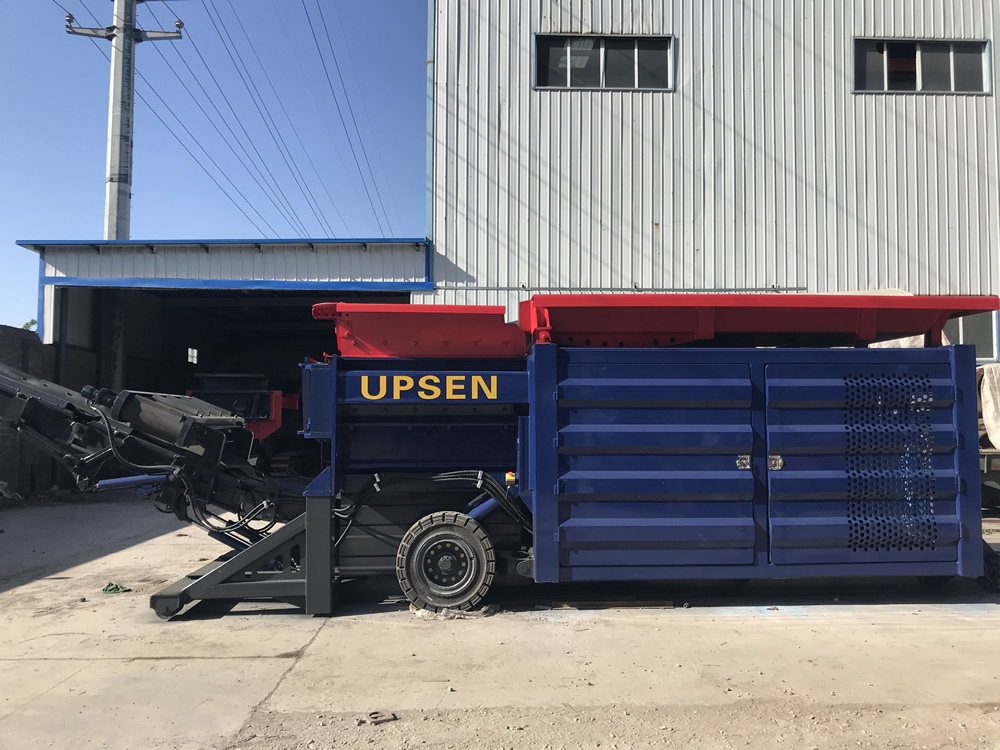

US750 waste shredder

us750 two shaft shredder is easy moving waste shredder for wood and metal with Efficient shaft

Hopper / Feeder

Feeding port dimensions：4500 х 2200 mm Working chamber dimensions：2000 х 1350 mm Working chamber volume：2,5 m3

Shredder

Shaft type / configuration： All-welded with teeth made of high-hardness steel, teeth are overlaid with high-hardness wire or interchangeable with replaceable blades. Set of shafts on the frame for crushing construction waste: bricks, plaster, building blocks, sanitary ware (installed in the machine). A set of shafts on the frame for crushing: wood, tires, furniture (in the delivery).

Belt Conveyor

Width of the discharge conveyor：800 mm

Driving System

Shaft drive Independent hydraulic drive for each shaft Shaft rotation Independently of each other, rotation is possible in any direction at different speeds Chassis type Hook Drive type Hydraulic, Linde Motor type Diesel, Cummins 242kw

Basic Parameters

Number of shafts ： 2 pieces Length of the working shaft：1500mm Total weight: ~ 19 t Capacity 15 t/h Design of the loading hopper Loading from above Loading height 2800 mm Crusher type Double-shaft crusher, with asynchronous shaft rotation Motor power 242 kW Dimensions (L/W/H) 8600 х 2200 х 3100 mm Height of material lifting by unloading conveyor 3000 mm Adjusting the size of the output fraction From 80 to 300 mm

us750doubleshredder us750wasteshredder

us705woodshredder

us705 is a stable waste shredder for wood and metal Efficient shaft change cassette，Equipped with two sets of crushing shafts

Shortens maintenance and refurbishment times of the shredding shafts

Proven synchronous functioning and The asynchronous function when crushing waste is more efficient

Perfectly suitable for the shredding of wood and green waste with a throughput of approx. 20 – 30t/h and a very small output grain size

Powerful cummis diesel engine，Strong performance with a consumption of approx. 15 – 20 l/h

The two-shaft shredder is particularly recommended for high-quality and homogeneous output material in the processing of natural and waste wood.shreding,Equipped as standard with a generous tilting hopper for optimal material feeding as well as a small tilting hopper for easy re-pressing of the waste material.

Thanks to the effective change cassette, installing and removing the shredding shafts is much easier to handle, which significantly speeds up maintenance and repair.

Height of material lifting by unloading conveyor	3000 mm
Adjusting the size of the output fraction	From 80 to 300 mm
