UPSEN mobile crusher ,Portable screener mobile shr

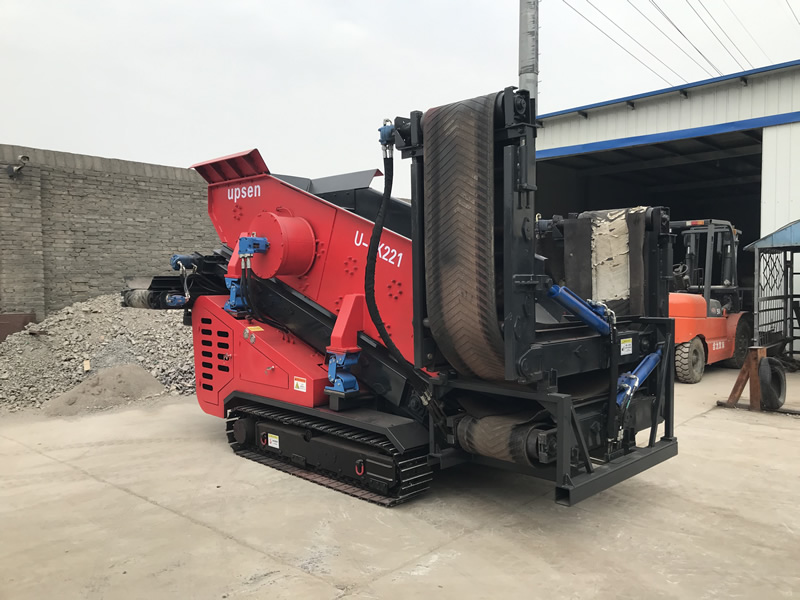

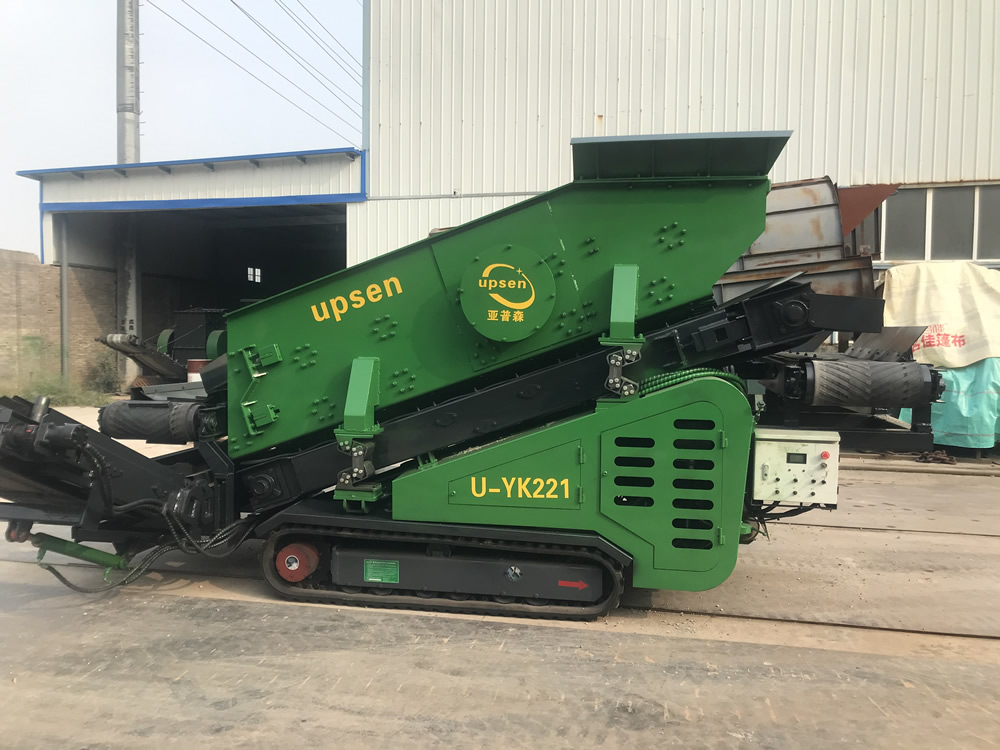

UYK221 mobile screener

The machine was created for the screening of rubbles, asphalt, marble, and other non-metallic demoli

  • Hopper / Feede

    1400x1100mm

  • Vibrating Screener

    length 2000mm width 1000 deck two

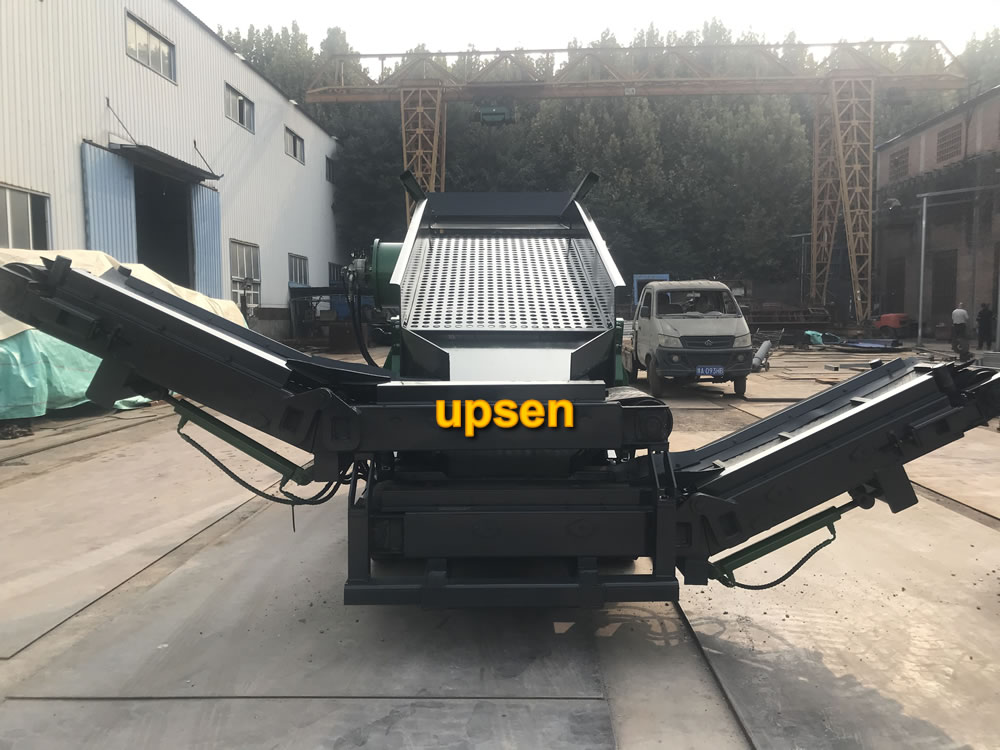

  • Belt Conveyor

    1 main discharge conveyor 800x2500mm 2 middle discharge conveyor 500x2300mm 3 overscreen discharge conveyor 500x2300mm

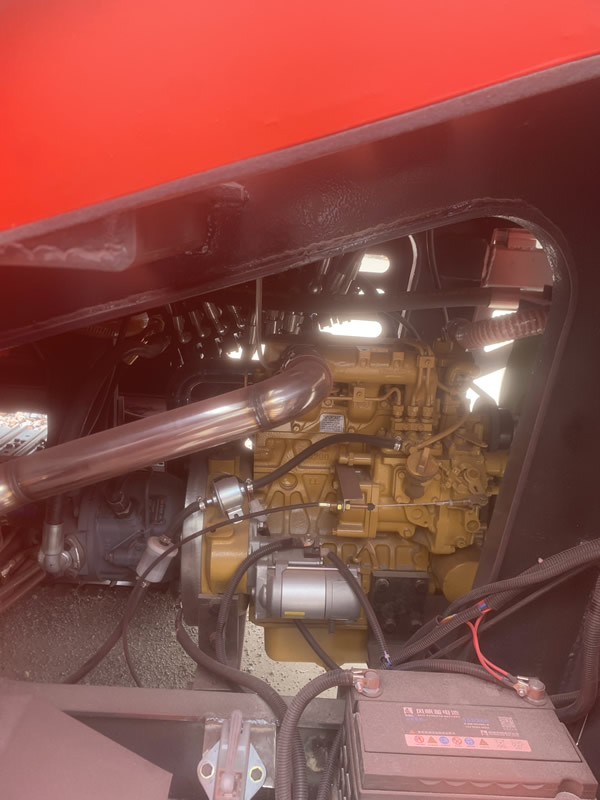

  • Driving System

    kutota 25hp parker bump

  • Basic Parameters

    capacity 50-80t/h weight 5100kg deck number 2 max input size 200mm output size customized

  • uyk221 is smallest self-propelling mobile screening plant,this screener can be fed directly by an excavator, backhoe, processed materials, or even a crusher extraction belt itself. It is powered by a 25 hp diesel engine and equipped with two 7′ x 3.5′ screens on its wide vibrating system. This small screener perfect for limited-access areas producing up to 50-80 tons per hour. It is designed for rubble and debris screening of material coming from construction and demolition,

    upsenmobilescreener

    mobilevibratingscreener

    uyk221portablescreeneruyk221mobilescreeningunit.mp4uyk221MobileCompactScreeningPlant


    73133

    8013
