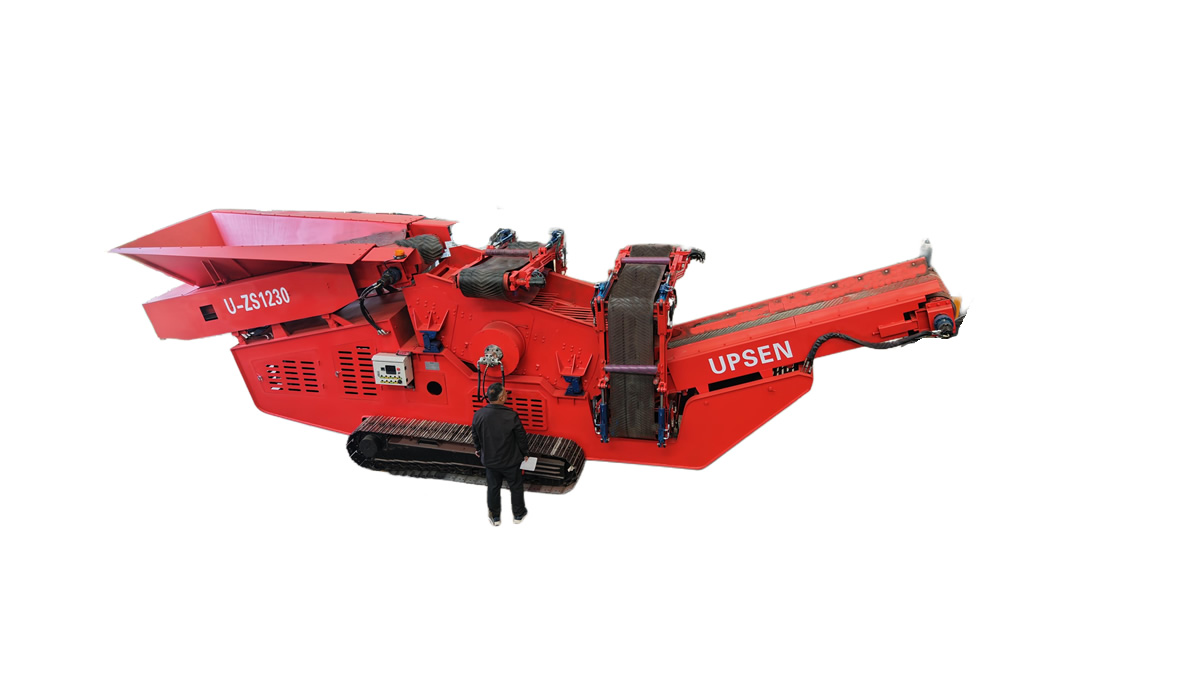

U-ZS1230 heavy mobile screener

upsen uzs1230 mobile screener in recycling machine

Hopper / Feede

Stock Bin Volume : 3m³ Belt feeder: B800*2100mm

Vibrating Screener

2YK1230 Screen size（mm）：1200*3000 Number of screen layers :2 Mesh size（mm）: 10/100（Custom made） Maximum feed particle size：500mm Throughput:100-200t/h

Belt Conveyor

Main conveyor:B800*2500mm Stacking height：2.8m Side conveyor:B500*4500mm Stacking height：2.5m

Driving System

StagelllA /V:YANMAR 4TNV98(45kw)

Basic Parameters

Weight ：11500kg Working size(LxWxH)：9.4*10.6*3.1m Transportation size（LxWxH）：9.6*2.25*2.55m

uzs1230heavymobilescreener

uzs1230mobile Screener is small enough to fit inside a container for transport but strong enough to withstand the toughest of applications.

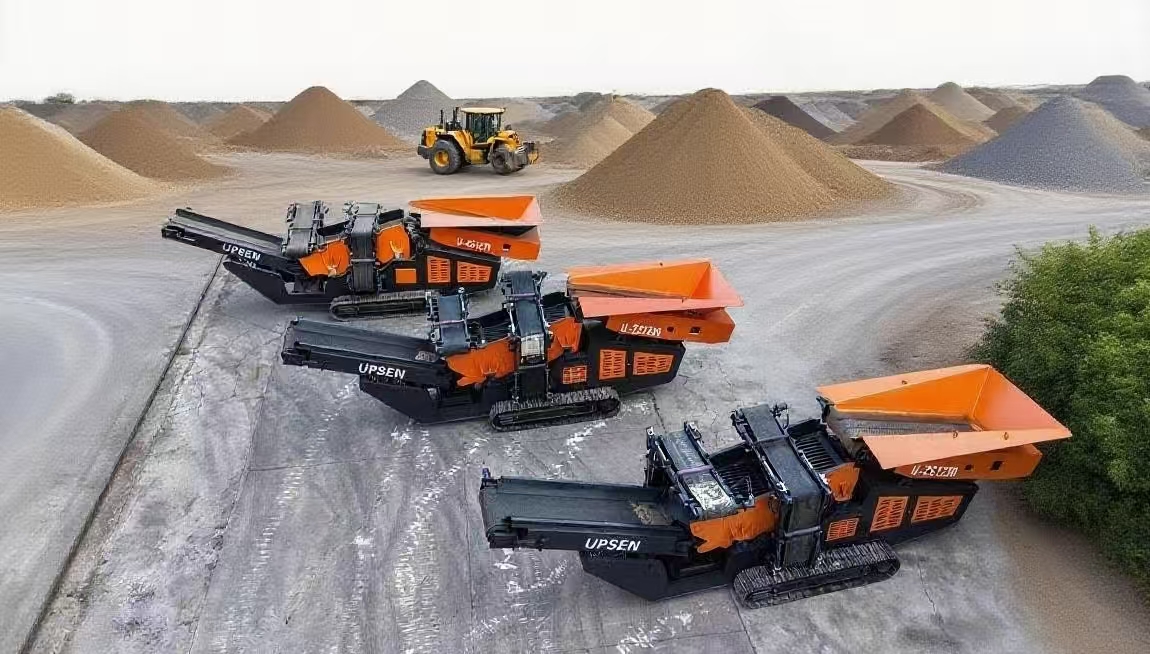

uzs1230 mobile screener can work in aggregates, sand and gravel, top soil, construction demolition and recycling applications where site space is at a premium.

mobileshredderandscreener

Let's work together

Contact us for quotations, rentals or to become a reseller of our machines.
