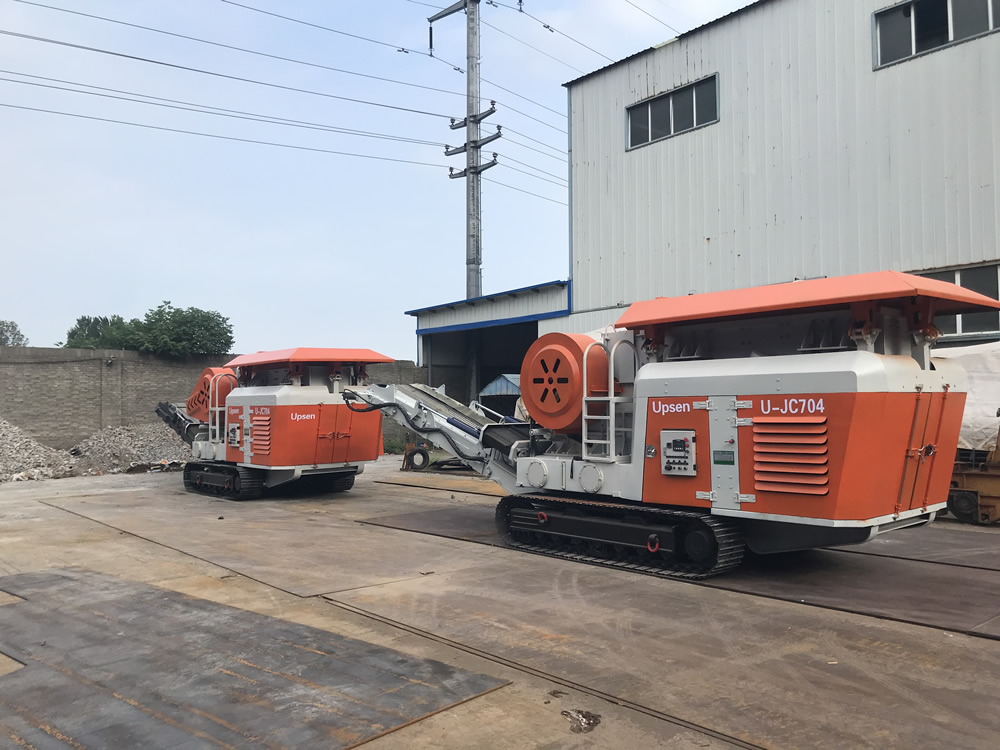

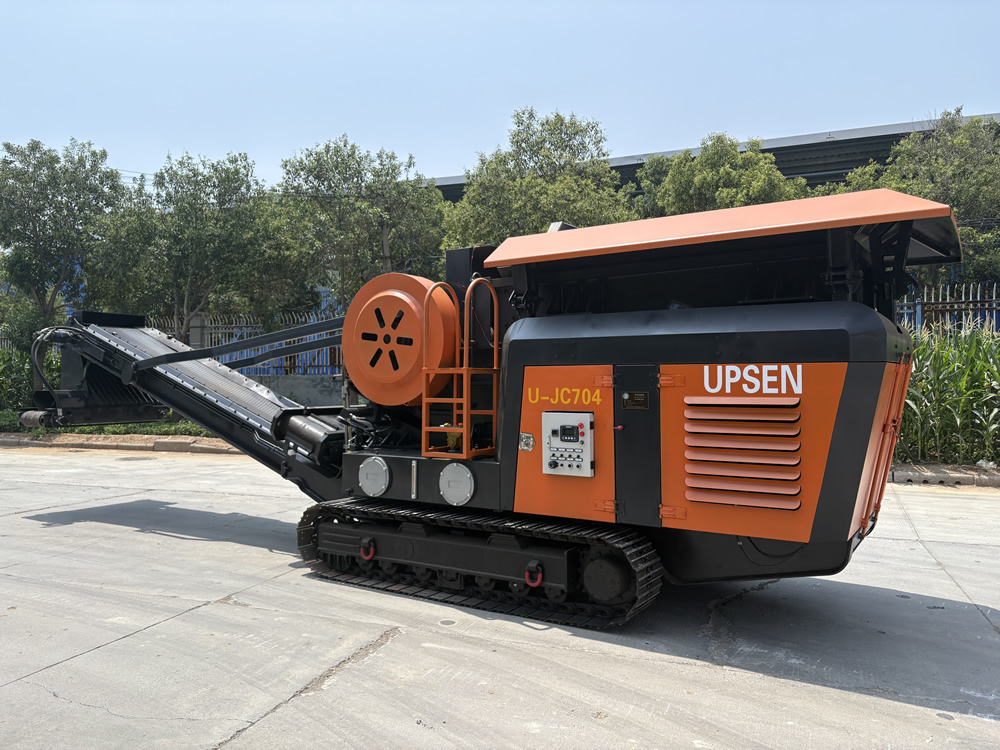

U-JC704 mobile stone crusher

upsen ujc704 mobile jawcrusher drive by diesel ，Demolition Waste crusher ，compact mobile crusher

Feeding System

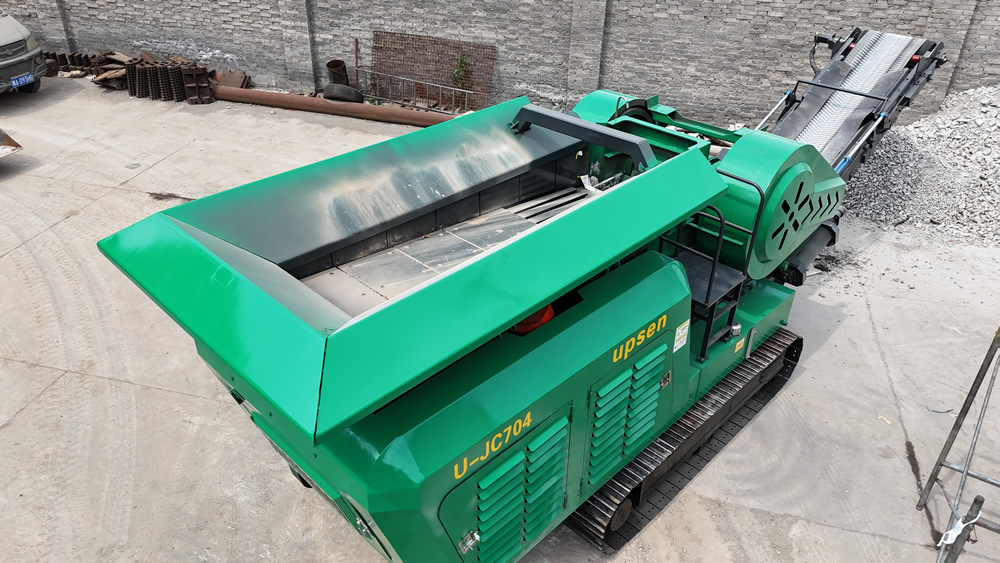

Stock Bin Volume : 3m³ Hopper size: 2200 * 3000mm Vibrating feeder: GZD0625

Crushing Equipment

Feed port size：680*430mm Max. Feeding Size：350mm Production capacity ：30-80t/h CSS Range： 20-80mm

Driving System

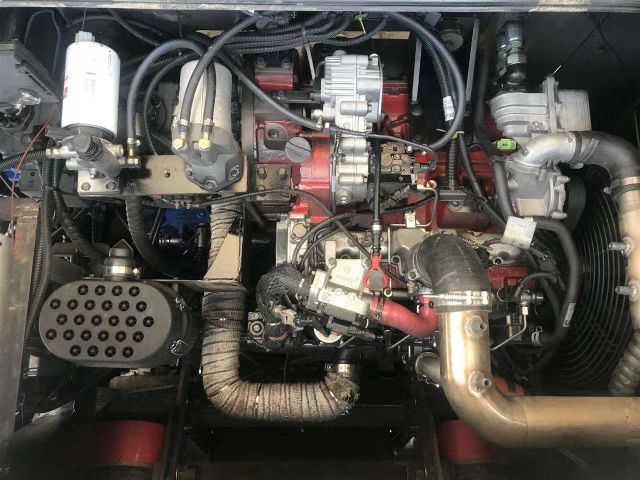

StagelllA:66KW 89HP Cummins Tier4Fina:54kw74hp YANMAR Stage V:54kw74hp YANMAR

Auxiliary Equipment

Belt conveyor：B650x6500 Stacking height：2.1m Belt type iron separator：RCY0515

Basic Parameters

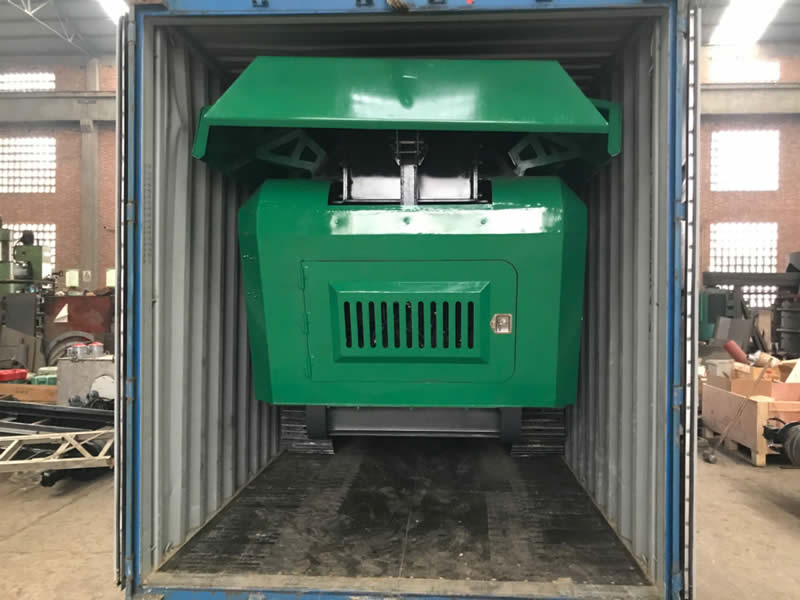

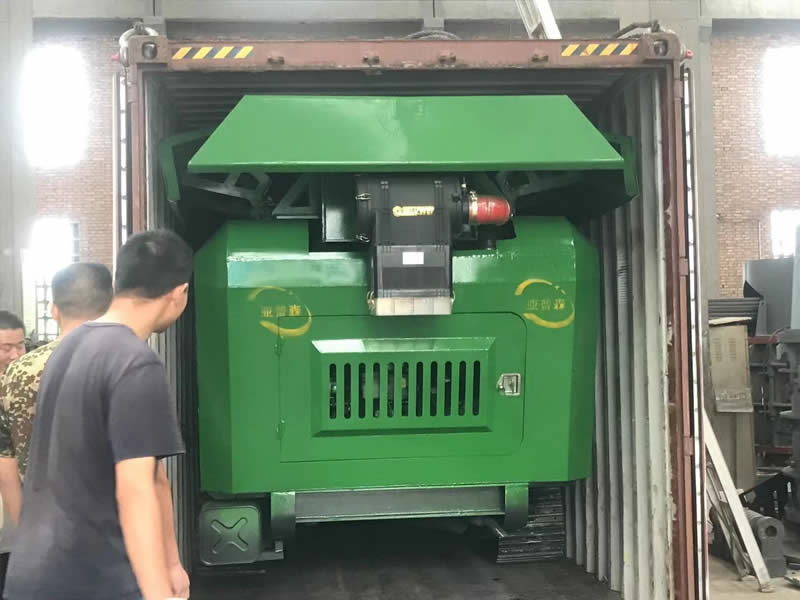

weight ：13500kg Working size(LxWxH)：8500*2200*2700mm Transportation size（LxWxH）：5950*2200*2600mm

upsenujc704mobilestonecrusher ujc704mobilecompactcrusher

202261

ujc704jawcrushingmachine

portablejawcrusher

UJC704mobileconcretecrusher

mobilestonecrusher

crawlermobilecrusher

ujc704mobilejawcrusher

ujc704portablejawcrusher

The upsen UJC704 jaw crusher has a compact mobile structure ，it is convenient and flexible to transport. ujc704 is an ideal equipment for urban construction waste treatment and demolition concrete recycling. It can greatly save your construction waste transportation cost, and the produced aggregate can be backfilled, or used as aggregate for bricks and concrete.
