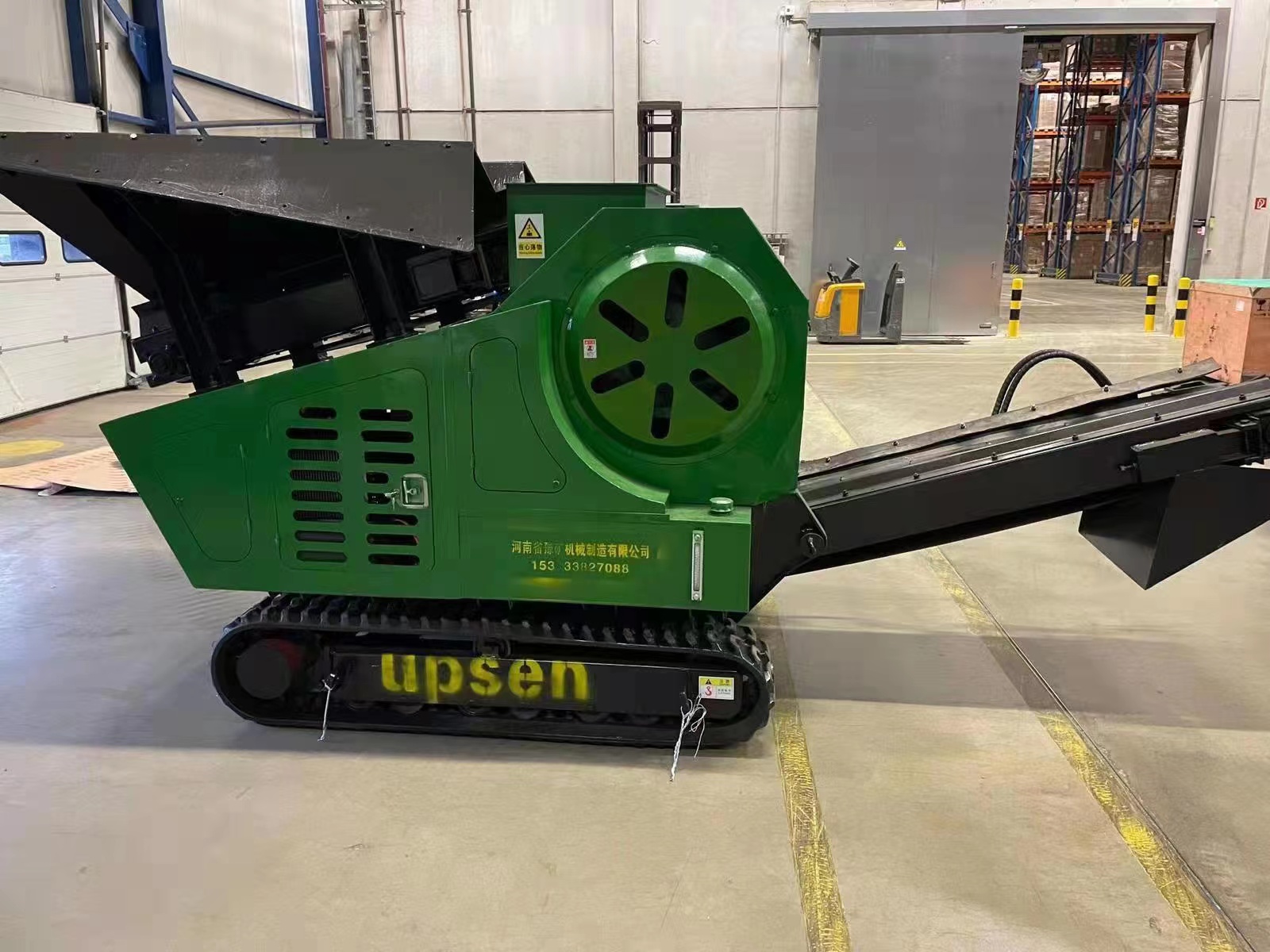

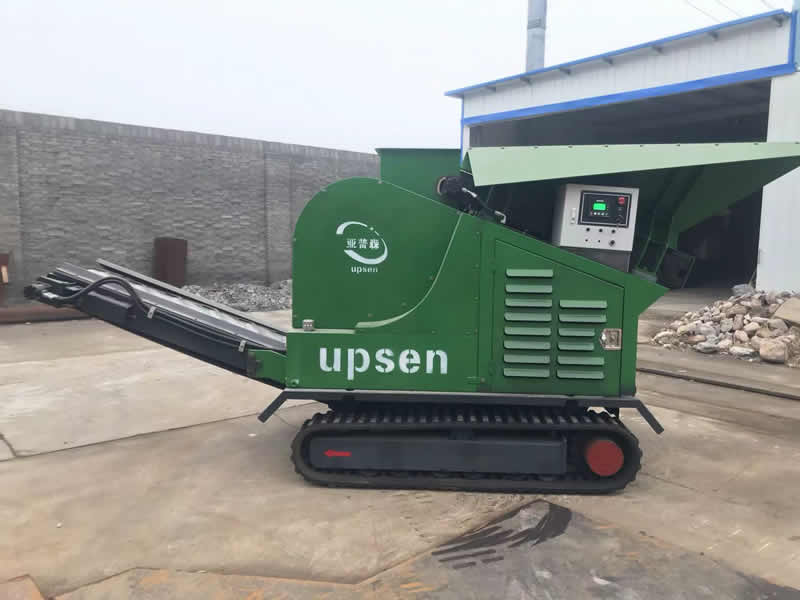

upsen U-JC503 mobile jaw crusher

Ujc503 mini mobile jaw crusher is used for concrete crushing,Construction waste recycling

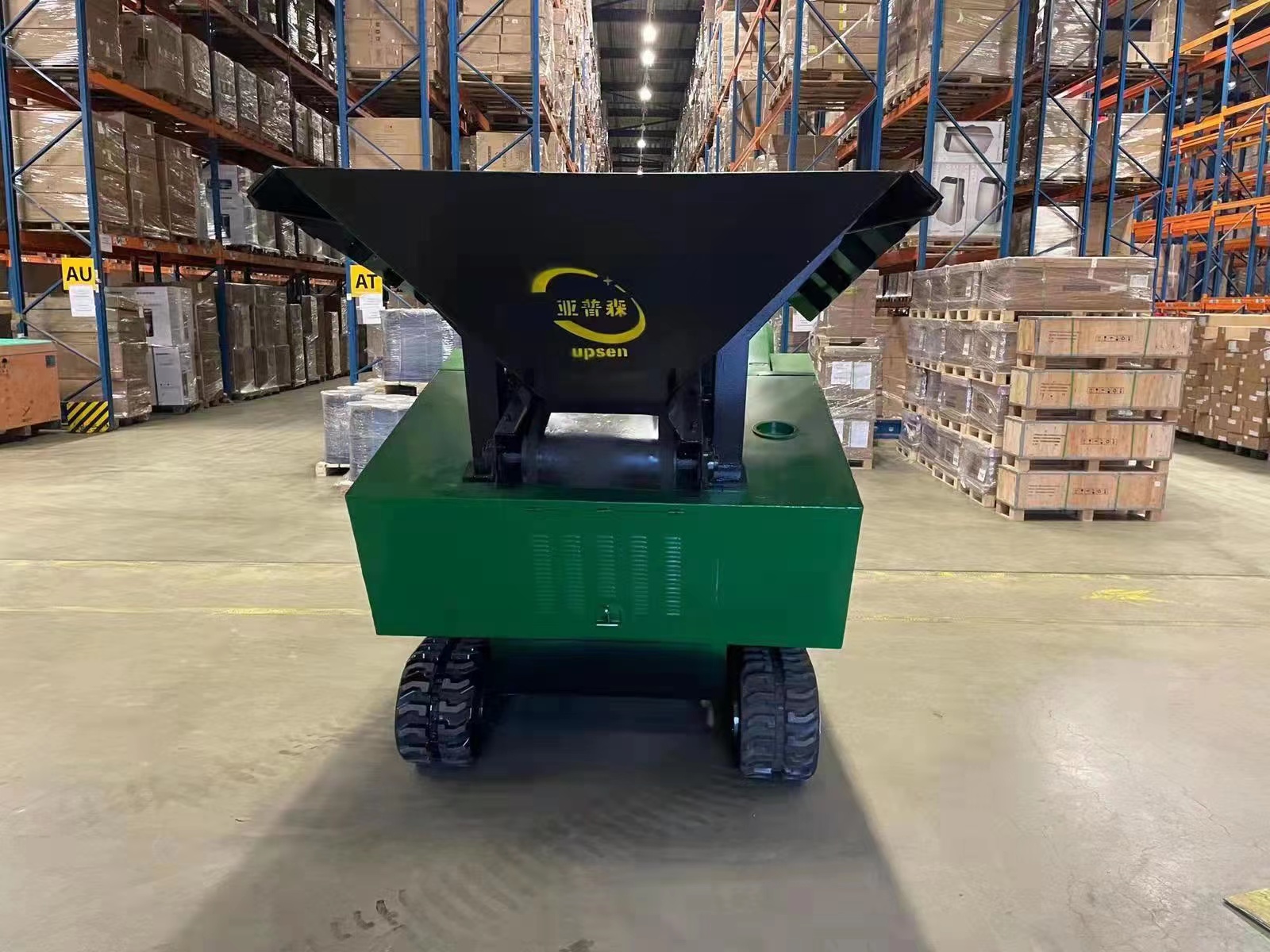

Feeding System

Stock Bin Volume : 1.5m³ Feeding Conveyor: B400*1500

Crushing Equipment

Feed port size：480*250mm Max. Feeding Size ：250mm Discharge size：0-50mm Production capacity ：10-30t/h

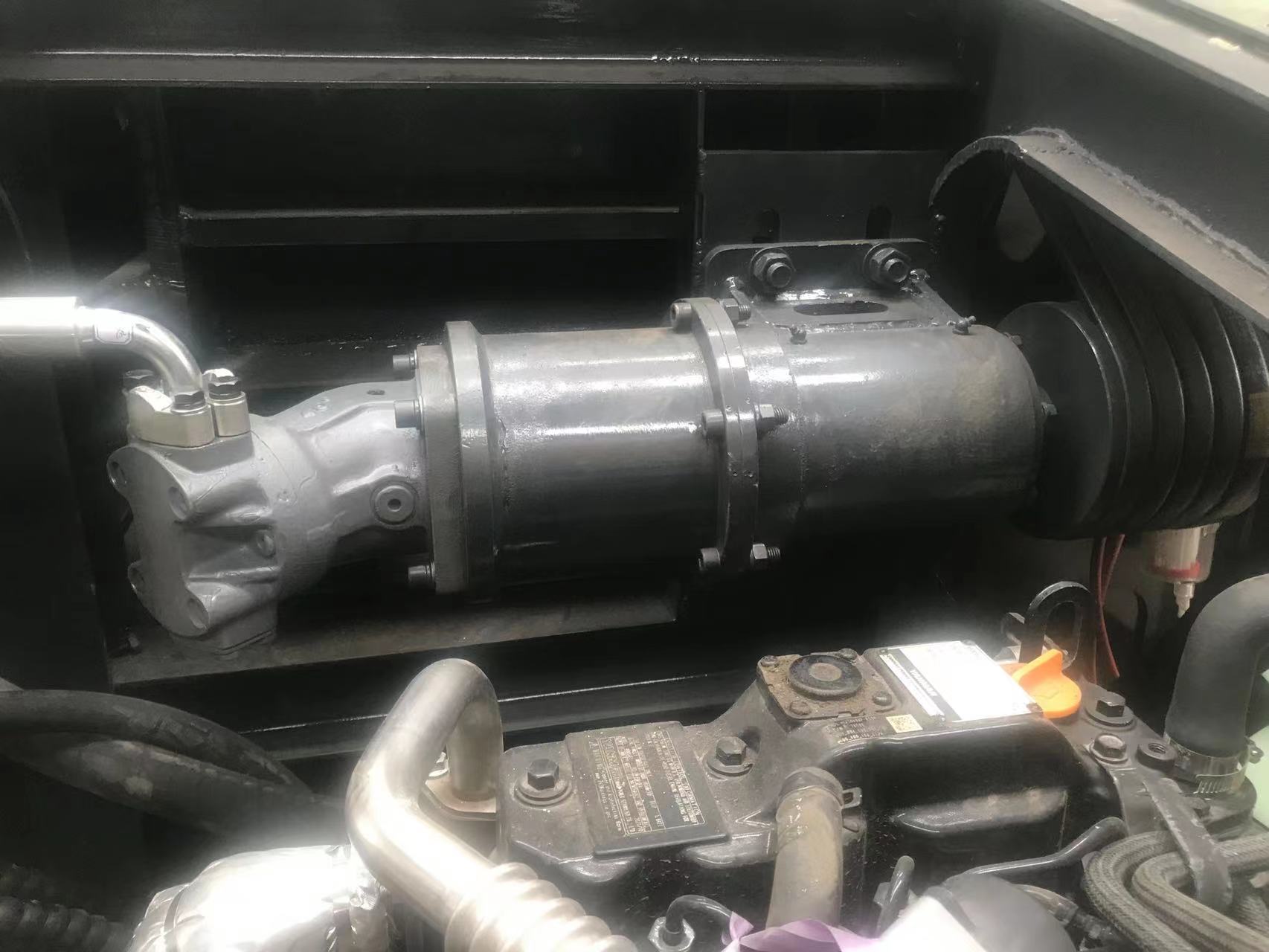

Driving System

StagelllA:24KW 33HP Tier4Fina:18.2kw25hp YANMAR Stage V:18.2kw25hp YANMAR

Auxiliary Equipment

Belt conveyor：B400x2500 Stacking height：1.1m

Basic Parameters

weight ：3850kg Working size(LxWxH)：4600x1600x1960mm Transportation size（LxWxH）：2800x1600x2200mm

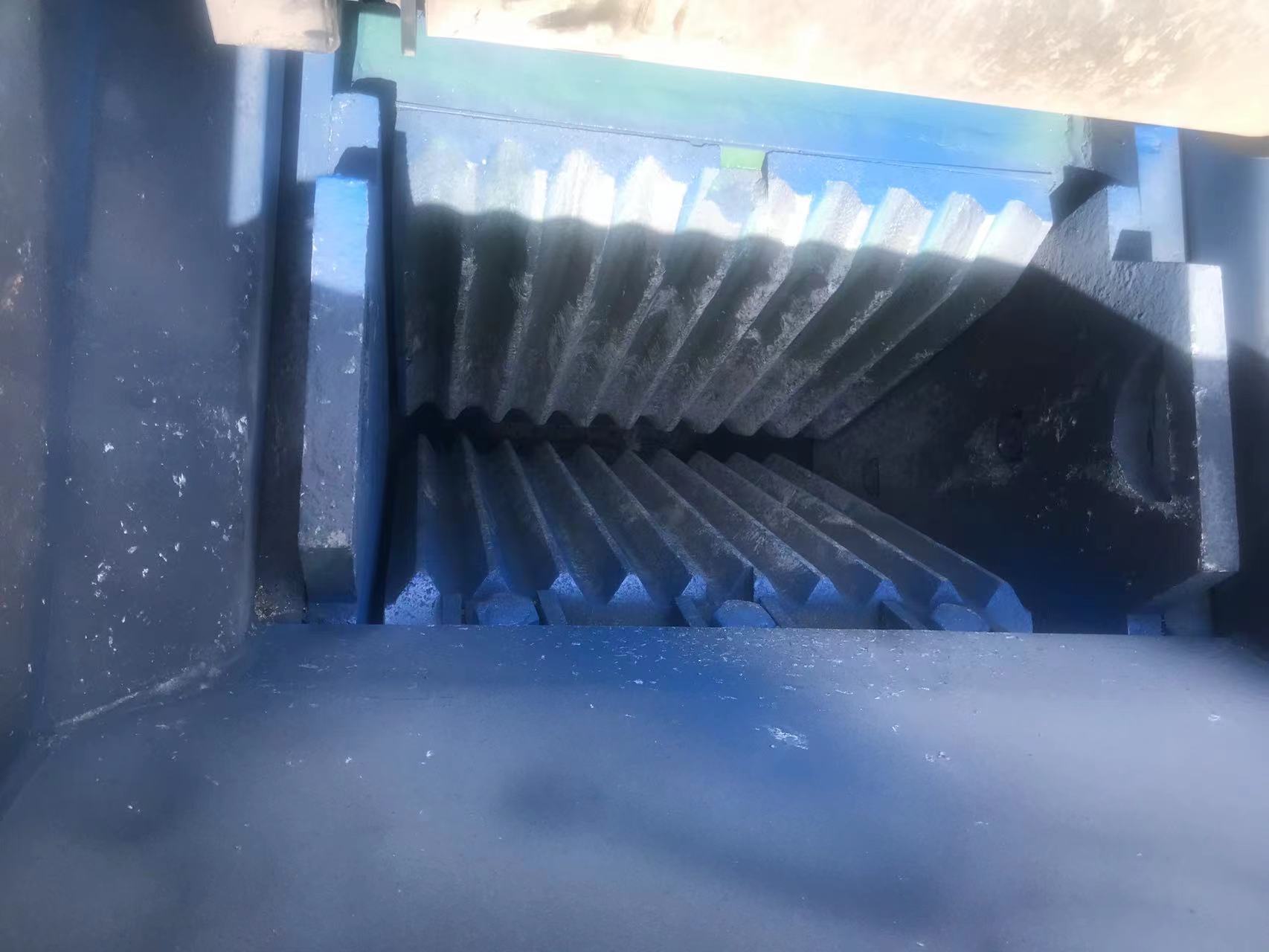

upsenujc503trackmobilejawcrusher e size of the ujc503 feeding port is 480x300mm. It is a small, mobile and flexible mobile crusher, which can process construction waste and various ores. Upsen ujc503 has a compact structure, low fuel consumption, and meets Euro V and EPA emission standards. The jaw plate is made of high manganese 18 or ceramic material, which is durable and easy to replace.

503
